BDS Suspension 2" IFP Coilover Lift Kit 2021-2023 Ford F150 4WD
Upgrade your F150 with FOX 2.0 Performance Series IFP Coilovers improve performance and capability

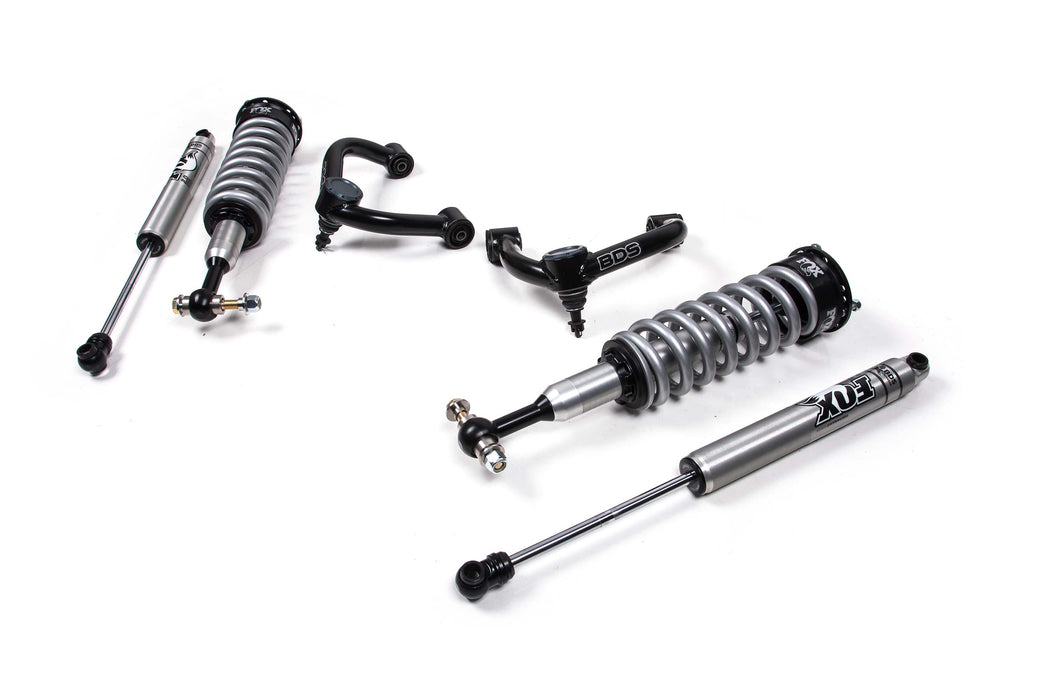

At the heart of these 2" coilover systems include a pair of specially tuned FOX 2.0 performance series coilovers. These non-reservoir coilovers are preset for the correct lift height right out of the box and use a threaded body to allow preload adjustment. They are a direct bolt-in replacement for the factory strut assemblies and improve damper performance featuring a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat treated alloy shaft all preloaded with coil springs ready for easy installation.
Also supplied as part of these complete 2" leveling system are a pair of BDS performance series upper control arms (UCA). These UCAs improve suspension travel and while providing superior strength and styling to the factory arms. These arms are built from 1.5" OD heavy wall tubing, fully welded with integrated support gussets. They include brake line mounting tabs and use an indexed ball joint cup to correct ball joint positioning back to the neutral position at ride height. The BDS arms come fully assembled with OE-style rubber bushings for the frame mounts and a high-quality ball joint for smooth, quiet operation and better durability than arms that use heims and uniballs. Rounding out the rear of this 2" coilover system are a pair of specially tuned FOX 2.0 performance series IFP shocks designed to pair with the front coilovers for impressive performance on and offroad. and allow clearance for 35" tires under your F150.
- Tire & Wheel Combinations
- 33x12.50 w/20x9 and 5.5" back spacing
*Trimming may be required*
- Est. Installation: 3 hours
- Difficulty Level (easy 1 - 5 complicated): 3
